KEL-SNAP
Advantages

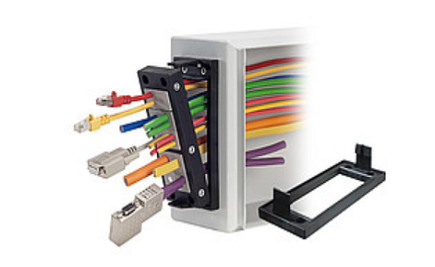

The patented KEL-SNAP  frame provides a quick assembly of the KEL system when necessary. Control panels, cabinets or machines can be equipped with the KEL-SNAP frame at delivery, allowing a simple push in of the KEL frame when routing the cables and conduits. Perfect for enclosures that are maintenance intensive or for an install at a later date.

-Upon disassembly (e.g. maintenance) screwing and unscrewing of KEL-frame is not necessary
-Previously assembled KEL frames are quickly and easily attached
-Integrated gasket
-Drilling template identical to KEL frame (except KEL-SNAP-B)

Specifications
IP rating: IP54
UL Type: 12
Material: Polyamide
Colour: black (RAL 9005)
Flame class: UL94-V0, self-extinguishing
Temperature (°C): -40 - 140 °C (static)
Properties: Halogen free, Silicone free
Mounting type: Screw type mounting
Mounting height: 38 mm
