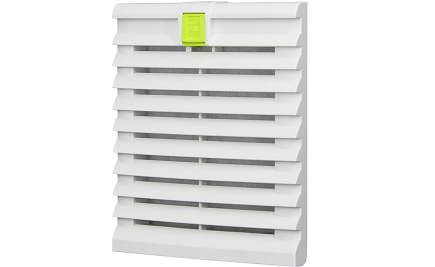

型号              Model

HFL902.230□□-□

HFL902.115□□-□

额定电压          Rated Voltage

230V,50Hz

115V,50Hz

额定功率          Rated Power

16 W

16 W

运行噪声          Working Noise

45 dB

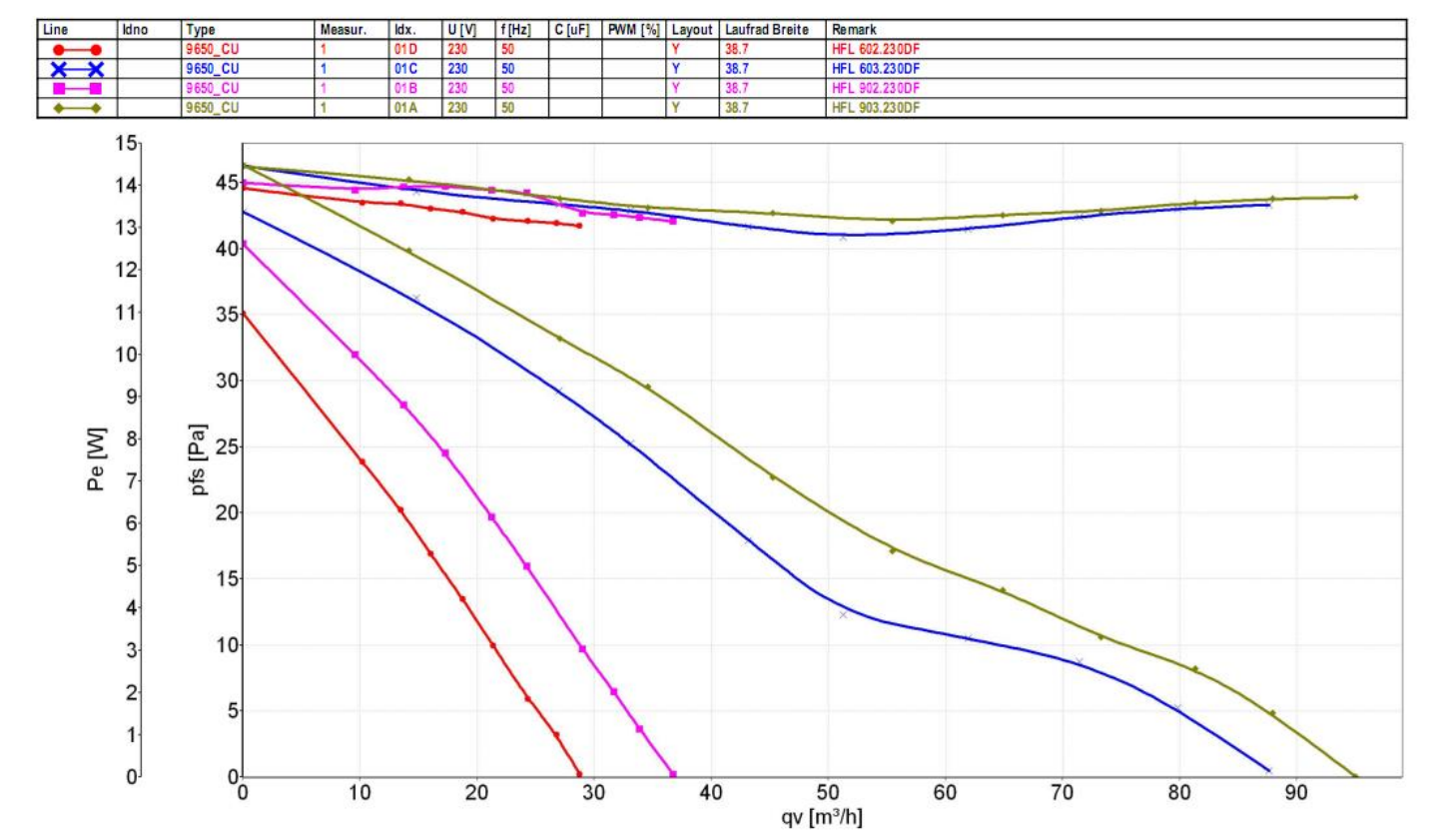

空气流量(带过滤垫)  AirFlow(with Filter mats)

38 m?/h

接线方式          Wiring Type

预置端子 (Connect with preset terminal)

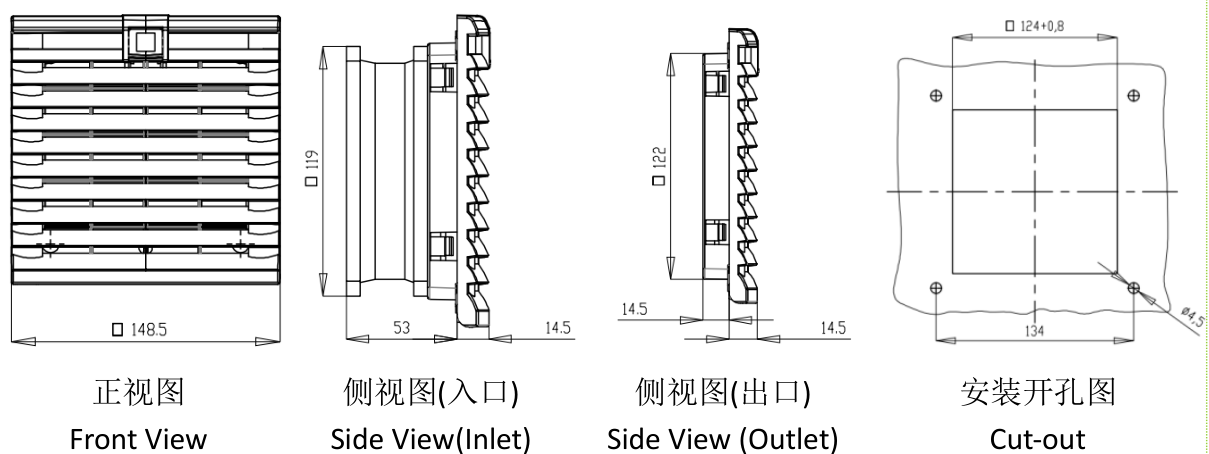

最大尺寸(宽×高×深)    Sizes (W*H*D)

148.5 × 148.5 × 67.5mm

开孔尺寸(宽×高)    Cut-out(W*H)

124 × 124 mm

风扇类型    Fan Type

滚珠轴流风扇，使用寿命(L10，10℃):  50,000小时

Axial-flow fan, ball bearing, service life (L10, 10°C): least 50,000 hours

风扇产地    Origin of Fan

德国EBM(Germany EBM Papst)

密封垫      Gasket

寿命不少于10年

Service life: least 10 years

过滤棉型号  Filter Mat Type

FLT02.12-G3 （德国- Germany）

过滤棉材料  Filter Mat Material

工业用化学纤维  Industrial Chemical Fiber

过滤等级    Filter Grade

G3 (按EN 779 测试)  G3 (Test on EN779)

过滤效率    Filter Efficiency

90%

ABS阻燃等级

ABS Flame retardant grade

可选阻燃UL94-V0

Optional for UL94-V0

外壳材质    Filter Shell Material

ABS工程塑料 ABS Engineering Plastics

(可选ASA+PC合金材料，运行温度-40℃～+80℃)

 (Optional ASA+PC Alloy Material,

with a Operating Temperature from -40℃ to +80℃)

外壳颜色    Filter Color

RAL7035 (可选RAL7032)

RAL7035 (Optional RAL7032)

运行温度  Operating Temperature

-25℃ ～ +55℃

储存温度  Storage Temperature

-30℃ ～ +70℃

运行/存储湿度

Operating / Storage Humidity

不超过 90% RH

No more than 90% RH

重量      Weight

690 g

防护等级  IP Grade

IP 54 (加防喷水罩可提高到IP 56)

IP 54 (Reach IP 56 while adding Water-proof Cover)

认证      Certificate

CE、UL认证；符合ROSH、REACH指令

CE、UL Certificate；Comply with ROSH, REACH instruction

EMC兼容  EMC Compatibility

是 (Yes)
