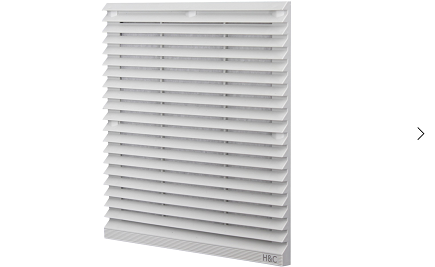

型号              Model

HFL604.230□□-□

HFL604.115□□-□

额定电压          Rated Voltage

230V,50/60Hz

115V,50/60Hz

额定功率          Rated Power

28/35 W

24/30 W

运行噪声          Working Noise

54/58 dB

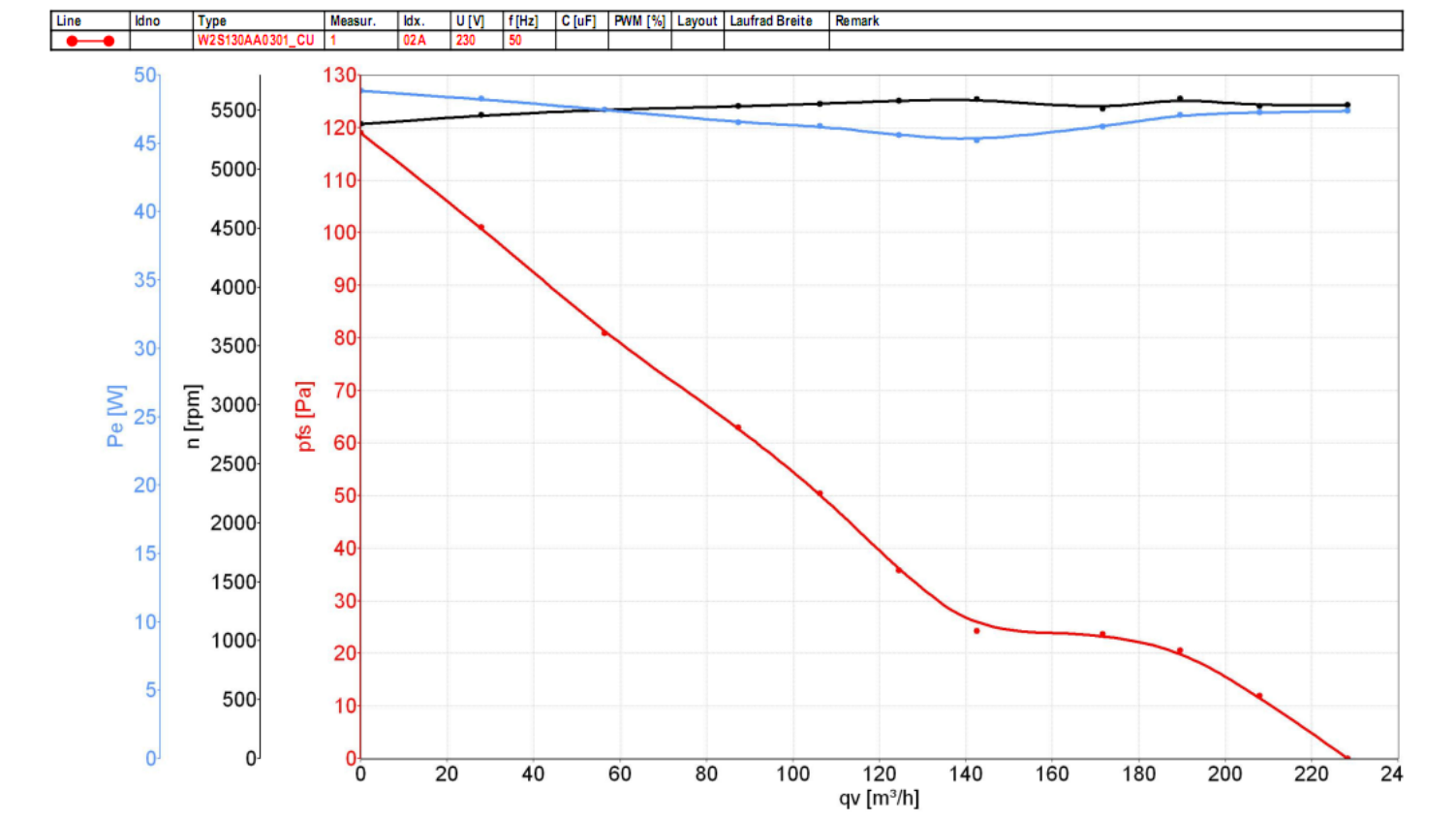

空气流量(带过滤垫)  AirFlow(with Filter mats)

230/265 m?/h

接线方式          Wiring Type

预置端子 (Connect with preset terminal)

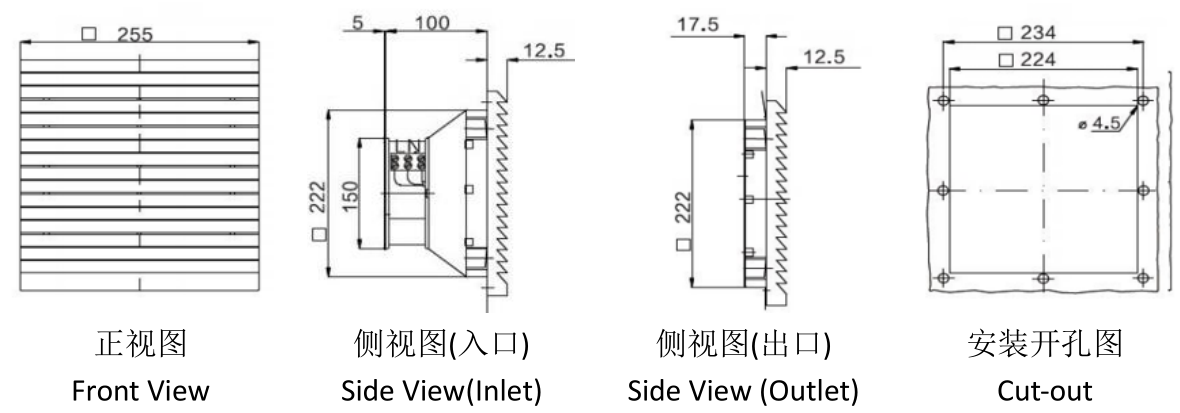

最大尺寸(宽×高×深)    Sizes (W*H*D)

255 × 255 × 117.5 mm

开孔尺寸(宽×高)    Cut-out(W*H)

224 × 224 mm

风扇类型    Fan Type

滚珠轴流风扇，使用寿命(L10，10℃):  50,000小时

Axial-flow fan, ball bearing, service life (L10, 10°C): least 50,000 hours

风扇产地    Origin of Fan

国产、台湾、德国三种选择

Three Options:  China · Taiwan(China) · Germany

密封垫      Gasket

寿命不少于10年

Service life: least 10 years

过滤棉型号  Filter Mat Type

FLT04.12-G3

过滤棉材料  Filter Mat Material

工业用化学纤维  Industrial Chemical Fiber

过滤等级    Filter Grade

G3 (按EN 779 测试)  G3 (Test on EN779)

过滤效率    Filter Efficiency

90%

ABS阻燃等级

ABS Flame retardant grade

可选阻燃UL94-V0

Optional for UL94-V0

外壳材质    Filter Shell Material

ABS工程塑料 ABS Engineering Plastics

(可选ASA+PC合金材料，运行温度-40℃～+80℃)

 (Optional ASA+PC Alloy Material,

with a Operating Temperature from -40℃ to +80℃)

外壳颜色    Filter Color

RAL7035 (可选RAL7032)

RAL7035 (Optional RAL7032)

运行温度  Operating Temperature

-25℃ ～ +55℃

储存温度  Storage Temperature

-30℃ ～ +70℃

运行/存储湿度

Operating / Storage Humidity

不超过 90% RH

No more than 90% RH

重量      Weight

1173 g (带国产风机) (With fan made in China)

1133 g(带台湾风机) (With fan made in Taiwan(China))

1473 g(带德国风机) (With fan made in Germany)

防护等级  IP Grade

IP 54 (加防喷水罩可提高到IP 56)

IP 54 (Reach IP 56 while adding Water-proof Cover)

认证      Certificate

CE、UL认证；符合ROSH、REACH指令

CE、UL Certificate；Comply with ROSH, REACH instruction

EMC兼容  EMC Compatibility

可选(Optional)
